Supermicro Media Transcoding SuperWorkstation (SYS-542T-2R)

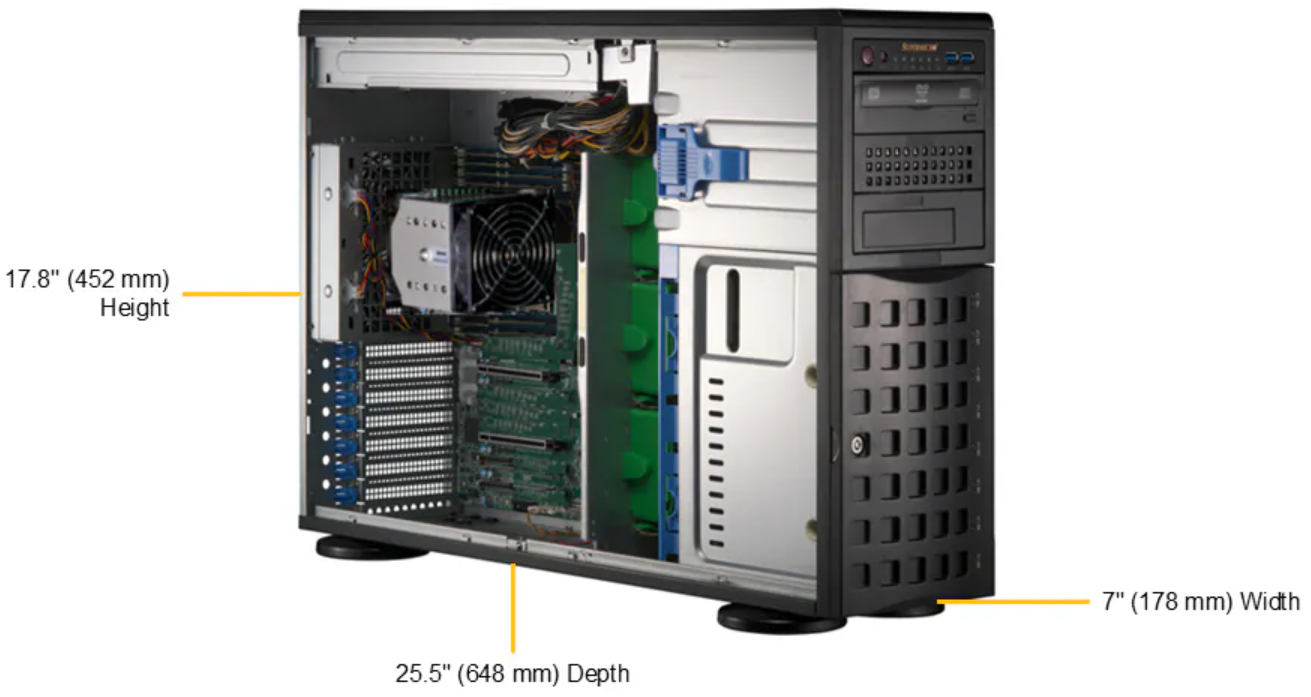

The Supermicro SYS-542T-2R is a 4U tower SuperWorkstation powered by an Intel Xeon 6 SoC with 36 P-Cores and integrated Media Transcoding Accelerator at 235W TDP, with 4 DDR5 RDIMM slots supporting up to 2TB at 6400MT/s. It provides up to 16 front fixed 3.5"/2.5" NVMe/SAS/SATA drive bays, support for up to 1 triple-wide or 2 double-wide PCIe GPUs (NVIDIA RTX PRO 6000 Blackwell down to GeForce RTX 5080/5090), 2x PCIe 5.0 x16 FHFL plus additional PCIe 4.0 slots, dual onboard 100GbE QSFP28 networking, 2x M.2 slots, TPM 2.0 with Silicon Root of Trust, and redundant 1200W/2200W Titanium hot-plug PSU options.
